Features
- Unpopulated Garage Unit
- Metal Garage unit enclosure
- Anthracite grey finish
- 5 Free Ways
- 10 year warranty
- IP65 Rated
Play Video
Exit Zoom
Close Video
Description

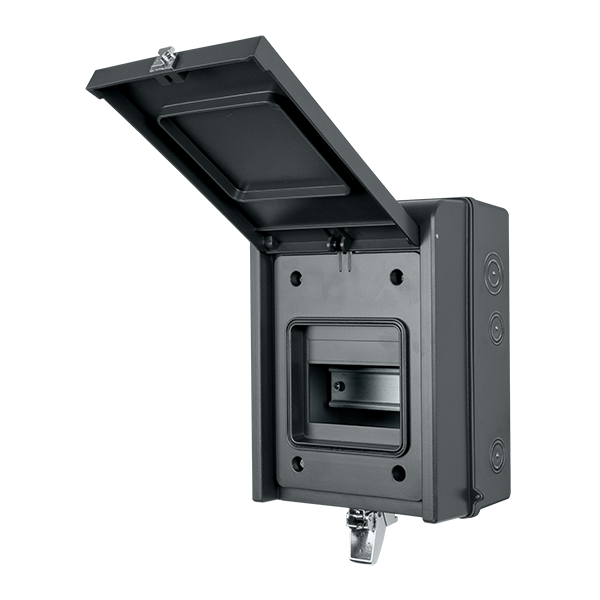

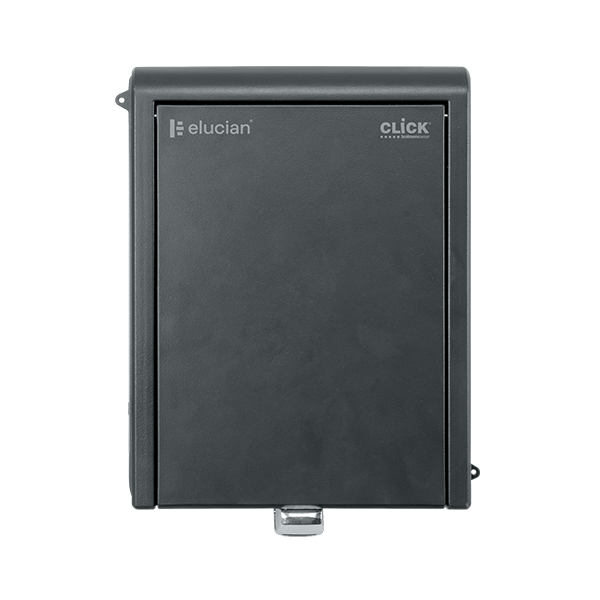

The Elucian IP65 Garage Unit is a durable and secure power distribution solution designed for use in garages, extensions, workshops, and sheds. Constructed from die-cast aluminium, it offers exceptional strength, impact resistance, and protection against corrosion, ensuring long-lasting performance in tough environments.Security is a key feature of this unit, with a built-in lock that prevents unauthorised access, providing peace of mind for both installers and users. Its IP65-rated protection ensures resistance to dust and water ingress. For ease of installation, the unit is designed with multiple knockout sizes (20mm, 25mm, and 32mm), allowing for flexible cable entry. Larger openings can also be created using a hole saw, ensuring compatibility with a wide range of installation requirements while maintaining its IP65 rating.The Elucian IP65 Garage Unit is available in different configurations, including options with a 100A Mains Switch or a 63A RCD, as well as empty versions for custom setups. Each variant provides a reliable solution tailored to different electrical distribution needs.With its combination of strength, security, and versatility, the Elucian IP65 Garage Unit is a trusted choice for electricians and installers looking for a secure, adaptable, and long-lasting power distribution unit.
The Elucian IP65 Garage Unit is a durable and secure power distribution solution designed for use in garages, extensions, workshops, and sheds. Constructed from die-cast aluminium, it offers exceptional strength, impact resistance, and protection against corrosion, ensuring long-lasting performance in tough environments.Security is a key feature of this unit, with a built-in lock that prevents unauthorised access, providing peace of mind for both installers and users. Its IP65-rated protection ensures resistance to dust and water ingress. For ease of installation, the unit is designed with multiple knockout sizes (20mm, 25mm, and 32mm), allowing for flexible cable entry. Larger openings can also be created using a hole saw, ensuring compatibility with a wide range of installation requirements while maintaining its IP65 rating.The Elucian IP65 Garage Unit is available in different configurations, including options with a 100A Mains Switch or a 63A RCD, as well as empty versions for custom setups. Each variant provides a reliable solution tailored to different electrical distribution needs.With its combination of strength, security, and versatility, the Elucian IP65 Garage Unit is a trusted choice for electricians and installers looking for a secure, adaptable, and long-lasting power distribution unit.
Tech Specs
Rtd Oper. Volt. (V~) (Ue)
230
Rated Current (A)
100
Dimensions (mm)
195(W) x 250(H) x 120(D)
Blanks Supplied
1

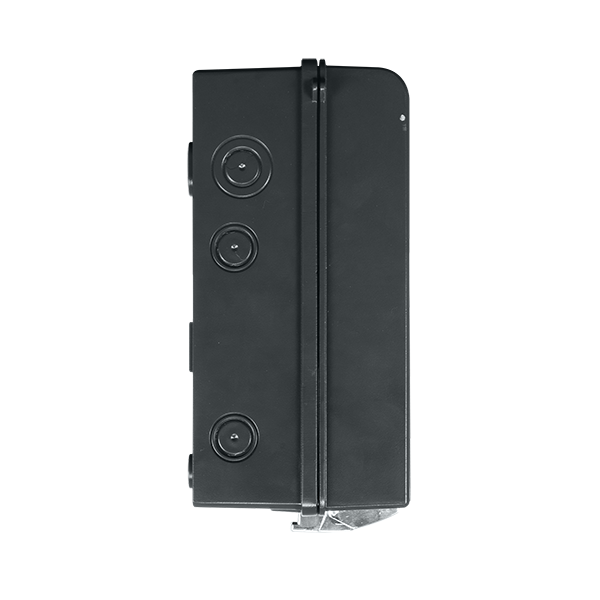

Side Knockouts (Ømm)
3 x 20, 2 x 25 & 1 x 32
Top Knockouts (Ømm)
4 x 20, 3 x 25 & 1 x 32
Bottom Knockouts (Ømm)
4 x 20, 3 x 25 & 1 x 32

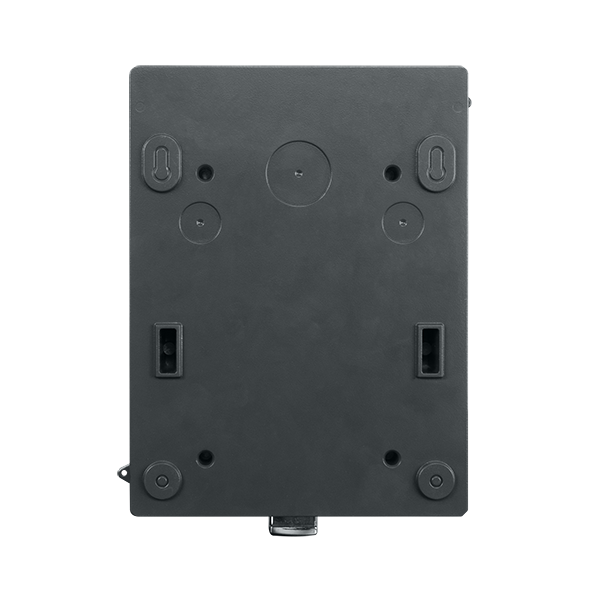

Rear Knockouts (mm)
2 x 20 & 1 x 32
IK Rating
5
Temp Rating (°C)
-5 to +40
* For more technical information, please
download our technical data below.
download our technical data below.
